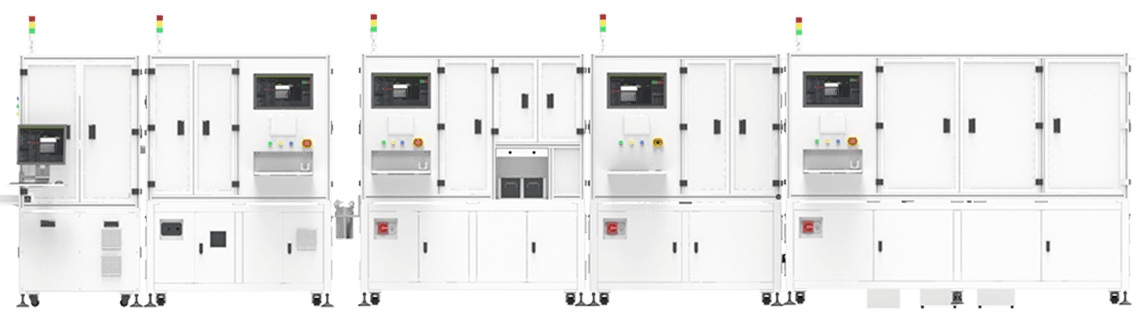

Micro-Sensor Assembly Line
Microsensors are a new generation of sensing devices made with MEMS processes, small and highly integrated. Manual assembly leads to poor assembly accuracy and low efficiency, and cannot deliver efficient, high-precision, low-cost volume production.
- Minimum assembly accuracy
- ±0.02 mm
- Throughput
- 1200 UPH
- Minimum finished-part size
- 2.5×4 mm
Specifications
- Line process
- Laser cutting, airtightness testing, top and bottom CCD placement, glue dispensing, laser welding, resistance welding, soldering, functional testing, CCD appearance inspection, CCD dimensional inspection, etc.
- Suitable products
- Acoustic microsensor assembly
- Loading/unloading method
- Inline, without stopping the line
- Software system
- DN software platform
Highlights
Strong compatibility: assembles products with or without a tube, and handles different sizes
Non-stop tray change: full and empty trays are swapped inline without stopping
Stable operation: 80K inspections per day without machine faults
High capacity: manual assembly at the customer site was 80 pcs per person per day; the multi-station line runs at UPH 1200
High precision: the finished part has 12 components and measures 2.7×4.9 mm; laser cutting 0.015 mm, glue width 0.3 mm, assembly accuracy ±0.02 mm, laser welding 0.2 mm
Multi-station: 13 stations in one line, covering laser cutting, airtightness, top and bottom CCD placement, glue dispensing, laser welding, resistance welding, soldering, functional testing, CCD appearance inspection and dimensional inspection
