Desktop Screw Fastening Machine

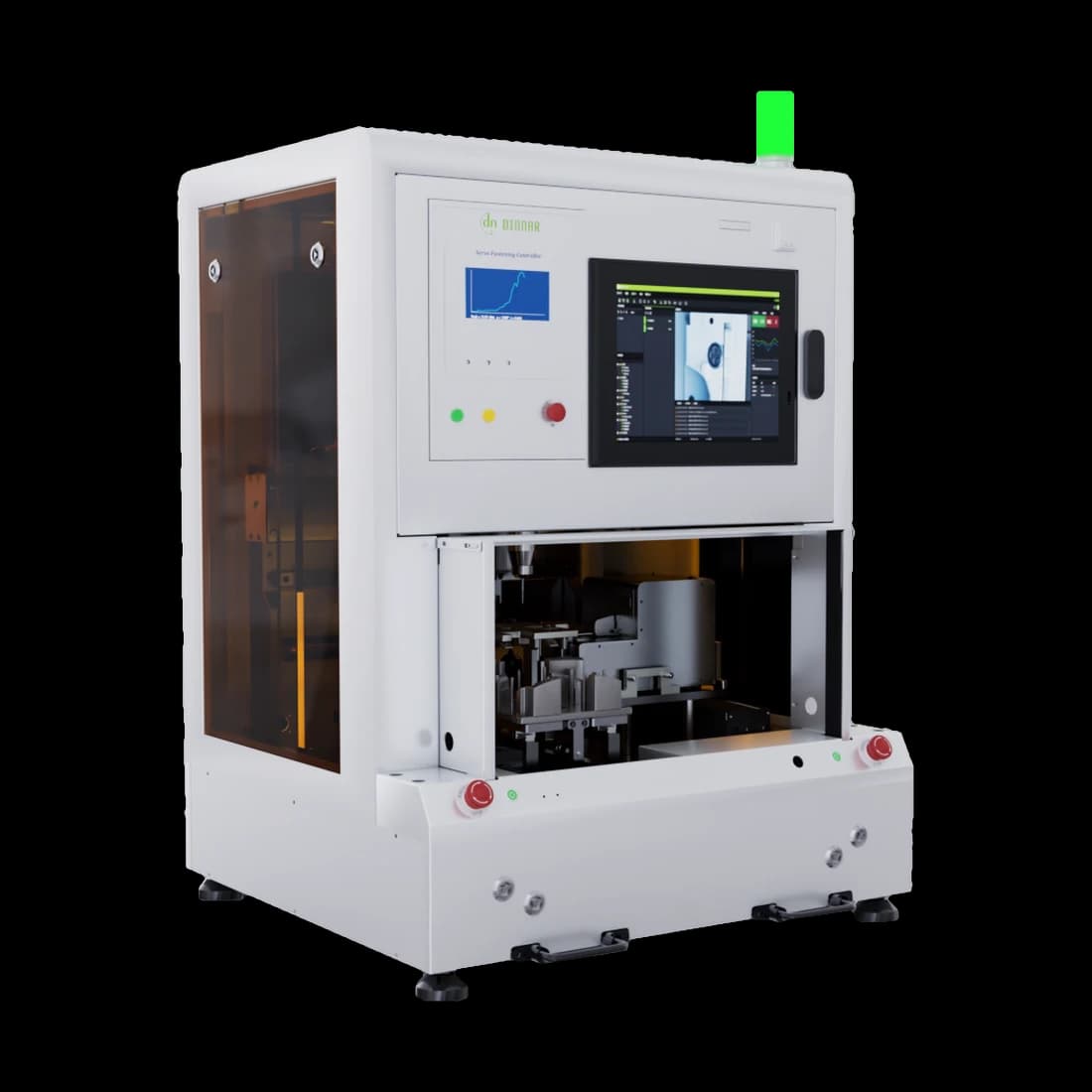

A desktop machine for automatic screw fastening, built from an intelligent tightening module, a fixture assembly and a feeder assembly. The operator loads the part on the fixture; the machine positions with a camera, picks up each screw by vacuum and tightens it, and the servo fastening controller displays the torque curve. Several machines can run side by side on one workbench.
- Cycle time per screw
- 5 s
Specifications
- Process
- Camera positioning, vacuum screw pick-up, screw tightening with torque-curve display
- Equipment total CT
- 25 s (including manual loading/unloading)
- UPH
- 180 pcs/H
- Locking torque
- 0.9±0.1 kgf.cm
- Cross-head screw model
- ST1.4X3.2 mm
- Equipment yield
- 99.7%
- Loading/unloading method
- Manual, CT 5 s
- Footprint
- L × W × H: 650 mm × 600 mm × 900 mm
- Mechanism
- Intelligent tightening module, fixture assembly, feeder assembly
See it in action
Silent clips from our 3D machine animations. While a clip is playing, you can pause it from the corner button.

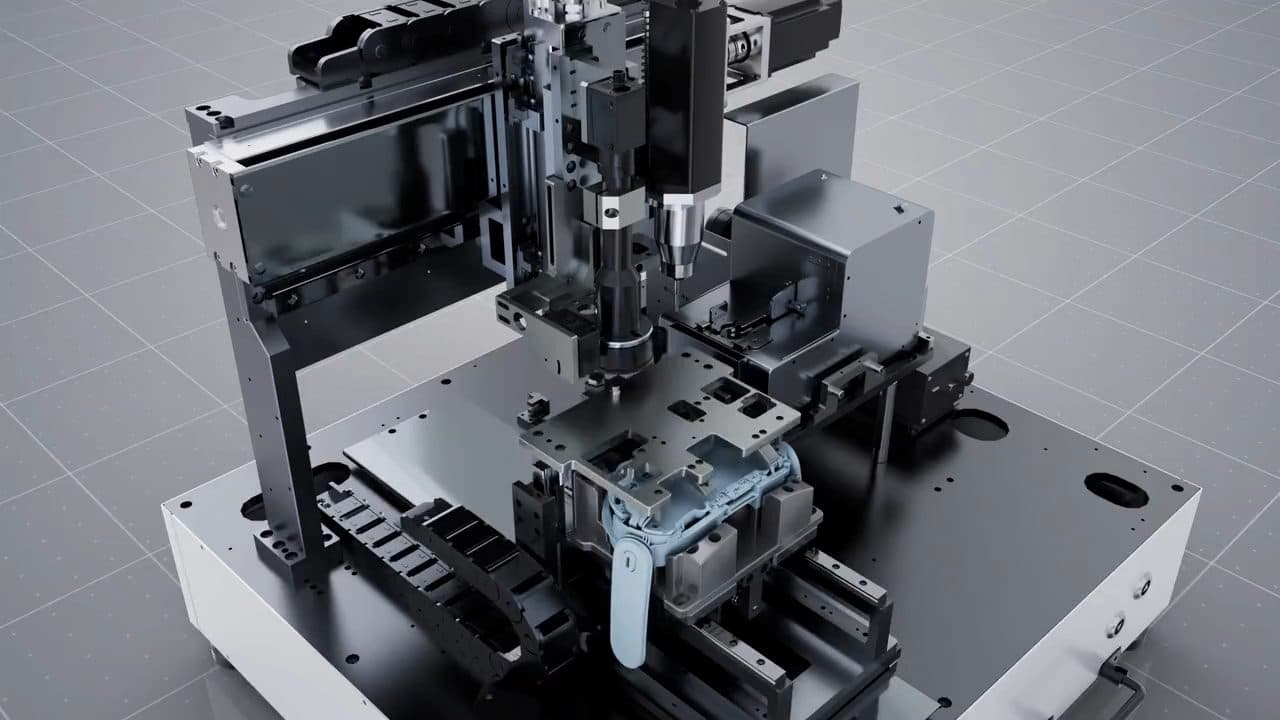

3D animation With the enclosure removed: the camera and the screwdriver travel over the part on the gantry and fasten the screws one by one.
Highlights
Desktop unit measuring 650 × 600 × 900 mm (L × W × H); several machines can run side by side on one workbench
Three modules: intelligent tightening module, fixture assembly and feeder assembly
Camera positioning before each screw is fastened
Screws are picked up from the feeder by vacuum
Servo fastening controller displays the torque curve of each tightening
Fast: CT = 5 s per screw
Equipment yield of 99.7%
Typical application
Bench-top screw fastening stations with manual loading and unloading
